FFT(VEP) Series - Threaded Flat-Face Couplings - Connect / Disconnect Under Pressure

Double Shut-Off Quick Couplings
Interchanges with
Stucchi VEP-P/VEP-HD Series, Dixon VEP Series, DNP PST4/FSI Series, Voswinkel FT Series, Parker FET Series

Features

■ Available body sizes 1/4” thru 1-1/2" (DN 6.3 thru 40).
■ High working pressures 400-550 bar range based on size.
■ Connects and disconnects by hand up to residual pressure 300 bar. Low force required for connection.
■ Flat face design eliminates spillage when disconnection. Threaded locking style avoids brinelling & premature leakage.
■ High impulse resistance exceeds 1,000,000 cycles.

Applications

The FFT series got flat face design which eliminates spillage during connection and disconnection, and avoids dirt into the circuit. More important, FFT series is a thread-lock type coupling with more safety and reliablity than ball-lock design connections, especially for critical and strong hydraulic applications. FFT series can connect and disconnect under residual pressure for hydraulic circuit applications with high pressure impulses, such as drilling rigs, oilfield services, drilling equipment, cranes, hammer, most heavy-duty construction Equipment, oil & gas and mining applications.

Threaded Flat Face Coupling From China SABE Mfg, Connect Disconnect Under Pressure

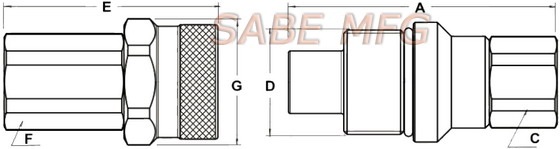

Part No. ISO DN Body Size Thread A E D G C F
FFT07-G04 6.3 1/4" G1/4" 71 54 M30x2 38.8 22 27
FFT09-G06 10 3/8" G3/8" 83 66 M33x2 41.8 27 30
FFT09-G08 10 3/8" G1/2" 85 71 M33x2 41.8 27 30
FFT13-G08 12.5 1/2" G1/2" 95 78 M40x3 49.8 36 36
FFT13-G12 12.5 1/2" G3/4" 98 85 M40x3 49.8 36 36
FFT15-G12 16 5/8" G3/4" 99 85 M45x3 53.8 36 41
FFT17-G12 19 3/4" G3/4" 113 98 M50x3 58.8 46 46
FFT17-G16 19 3/4" G1" 113 100 M50x3 58.8 46 46
FFT21-G16 25 1" G1" 124 106 M58x3 69.8 55 55
FFT21-G20 25 1" G1-1/4" 124 106 M58x3 69.8 55 55
FFT30-G20 31.5 1-1/2" G1-1/4" 150 135 M80x4 92.0 65 65
FFT30-G24 31.5 1-1/2" G1-1/2" 150 135 M80x4 92.0 65 65
FFT45-G32 42 2" G2" 218 225 M130x6 200.0 90 90

Standard Thread: BSPP(G), NPT, SAE O-Ring Boss(ORB) Female Thread, other thread available for custom order

Standard Material: Steel, Stainless Steel

Above dimensions only for BSPP(G) thread version

Specification

Body Size(ISO DN) 6.3 10 12.5 16 19 25 31.5 42
Max Flow (L/Min) 24 46 90 148 200 378 750 1000
Max Operating Pressure(MPa)
Connected 60 55 55 55 50 47 40 35
Coupler Only 42 33 33 33 33 30 27 27
Nipple Only 60 55 55 55 50 47 40 35
Burst Pressure(MPa)
Connected 150 140 140 140 125 120 110 110
Coupler Only 126 100 100 100 100 80 80 80
Nipple Only 150 140 140 140 125 120 110 110
Max Residual Pressure To Connection(MPa)
Both With Pressure 25 25 20 20 15 15 5 2
Coupler With Pressure 30 25 25 25 25 25 25 25
Nipple With Pressure 30 25 25 25 25 25 25 20
Max Residual Pressure To Disconnection(MPa)
  25 25 20 20 15 15 5 2
Temperature Rang -20°C to +80°C
Seal Standard NBR(Nitrile)

FPM(Viton®) seal is available and standard configuration for Stainless Steel QDs
