Push-Pull Style, Double Acting Sleeve One-Hand Operation Couplings

PP Series - Push-Pull Style/Double Acting Sleeve One-Hand Operation Couplings

Double Shut-Off Quick Couplings
Industry Standard
1/2" body size meets dimensional requirements of ISO 5675 Standard
Interchanges with
Parker 4200, Safeway S40, Faster CPV-CNV, Tomco CD Series

Features

■ 1/2" body size meets dimensional requirements of ISO 5675 Standard.
■ Two-way, double acting sleeve of the PP Series allows one-hand connect or disconnect when the coupling is clamp or bulkhead mounted.
■ Double shut-off design available with either Poppet valves to prevent uncoupled leakage or Ball valves for rugged dependability in heavy-duty hydraulic applications, within rated working pressures.
■ Reliable and durable ball locking mechanism provides smooth operation time after time. Critical parts are hardened for long service life.
■ Two-way sleeve design allows implement break-away when the coupling is clamp or bulkhead mounted.

Applications

PP Series brings to the industry a proven design for use on construction equipment, forestry equipment agricultural machinery, and oil tools.

Parker 4200, Safeway S40, Faster CPV-CNV, Tomco CD Series

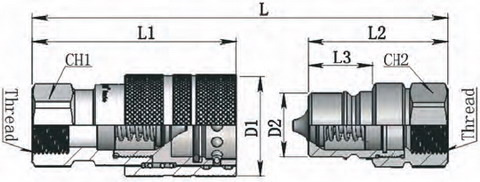

Part No. ISO DN Body Size Thread L L1 L2 D1 D2 CH1.2
PP10 10 3/8" 3/8" 82 60 40 33 17.2 24
PP12 12.5 1/2" 1/2" 96 68 50 38 20.5 27

Standard Material: Steel

BSPP, NPT & METRIC Thread are used widely as below

Parker 4200, Safeway S40, Faster CPV-CNV, Tomco CD Series Interchange

3/8”, 1/2" BSP & NPT Male Thread

3/8”, 1/2" BSP & NPT Female Thread

M22x1.5, M18x1.5, M22x1.5... Female (O-Ring) Thread

M14x1.5 8L, M16x1.5 10L, M18x1.5 12L, M22x1.5 15L, M26x1.5 18L, M20x1.5 12S, M22x1.5 14S, M24x1.5 16S, M30x2.0 20S... Male Thread

M14x1.5 8L, M16x1.5 10L, M18x1.5 12L, M22x1.5 15L, M26x1.5 18L, M20x1.5 12S, M22x1.5 14S, M24x1.5 16S, M30x2.0 20S... Male Bulkhead(Short) Thread

Specification

Body Size (inch) 3/8" 1/2"
Rated Pressure(PSI) 5000 7500
Rated Flow(GPM) 6 12
Temperature Range -20°Cto+80°C
Seal Standard NBR(Nitrile)

FPM(Viton®) seal is available, Please indicate if you need
